Plot parts of the state expanded hypergraph (experimental).

The plot is created based on a grid (rows, cols). Each grid point is numbered from bottom to top and left to right (starting from 1), i.e. given grid point with coordinates (r, c) (where (1,1) is the top left corner and (rows, cols) is the bottom right corner) the grid id is `(c

1. - rows + r`. You must assign a node to the hypergraph to a grid point (see below).

Usage

plotHypergraph(
  hgf,
  gridDim,
  showGrid = FALSE,
  radx = 0.03,
  rady = 0.05,
  cex = 1,
  marX = 0.035,
  marY = 0.15,
  ...
)

Arguments

hgf: A list with the hypergraph containing two data frames, normally found using getHypergraph(). The data frame nodes must have columns: sId (state id), gId (grid id) and label (node label). The data frame hyperarcs must have columns sId (head node), trans<n> (tail nodes), aIdx (action index), label (action label), lwd (hyperarc line width), lty (hyperarc line type) and col (hyperarc color).
gridDim: A 2-dim vector (rows, cols) representing the size of the grid.
showGrid: If true show the grid points (good for debugging).
radx: Horizontal radius of the box.
rady: Vertical radius of the box.
cex: Relative size of text.
marX: Horizontal margin.
marY: Vertical margin.
...: Graphical parameters passed to textempty.

Value

No return value (NULL invisible), called for side effects (plotting).

Examples

## Set working dir
wd <- setwd(system.file("models", package = "MDP2"))

#### A finite-horizon replacement problem ####
mdp<-loadMDP("machine1_")
#> Read binary files (0.000124503 sec.)
#> Build the HMDP (3.4901e-05 sec.)
#> Checking MDP and found no errors (1.5e-06 sec.)

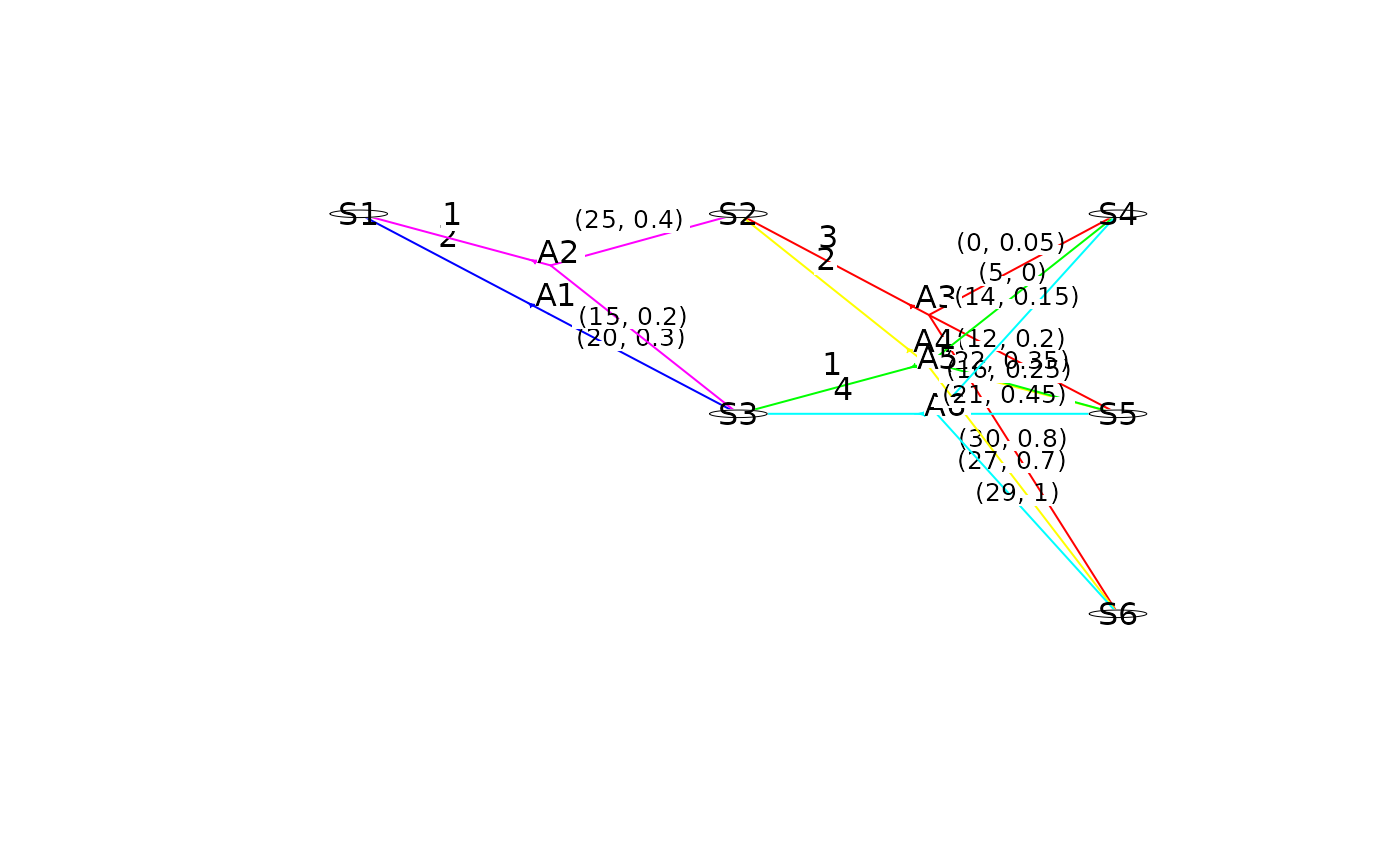

plot(mdp)

plot(mdp, hyperarcColor = "label")  # colors based on labels

plot(mdp, hyperarcColor = "label", nodeLabel = "sId:label")  # node labels are 'sId: label'

plot(mdp, nodeLabel = "sIdx:label", radx = 0.02)  # adjust radx in nodes

scrapValues <- c(30, 10, 5, 0)  # scrap values (the values of the 4 states at stage 4)
runValueIte(mdp, "Net reward" , termValues = scrapValues)
#> Run value iteration with epsilon = 0 at most 1 time(s)
#> using quantity 'Net reward' under reward criterion.
#>  Finished. Cpu time 9.001e-06 sec.
plot(mdp, hyperarcColor = "policy")  # highlight optimal policy
#> Joining with `by = join_by(sId, aIdx)`

plot(mdp, hyperarcShow = "policy", nodeLabel = "weight")  # show only optimal policy



#### An infinite-horizon maintenance problem ####
mdp<-loadMDP("hct611-1_")
#> Read binary files (0.000128403 sec.)
#> Build the HMDP (2.97e-05 sec.)
#> Checking MDP and found no errors (1.5e-06 sec.)
plot(mdp)  # plot the first two stages

plot(mdp, hyperarcColor = "label")  # colors based on labels

plot(mdp, hyperarcColor = "label", nodeLabel = "sId:label")  # node labels are 'sId: label'

runPolicyIteAve(mdp,"Net reward","Duration")
#> Run policy iteration under average reward criterion using
#> reward 'Net reward' over 'Duration'. Iterations (g):
#> 1 (-0.512821) 2 (-0.446154) 3 (-0.43379) 4 (-0.43379) finished. Cpu time: 1.5e-06 sec.
#> [1] -0.43379

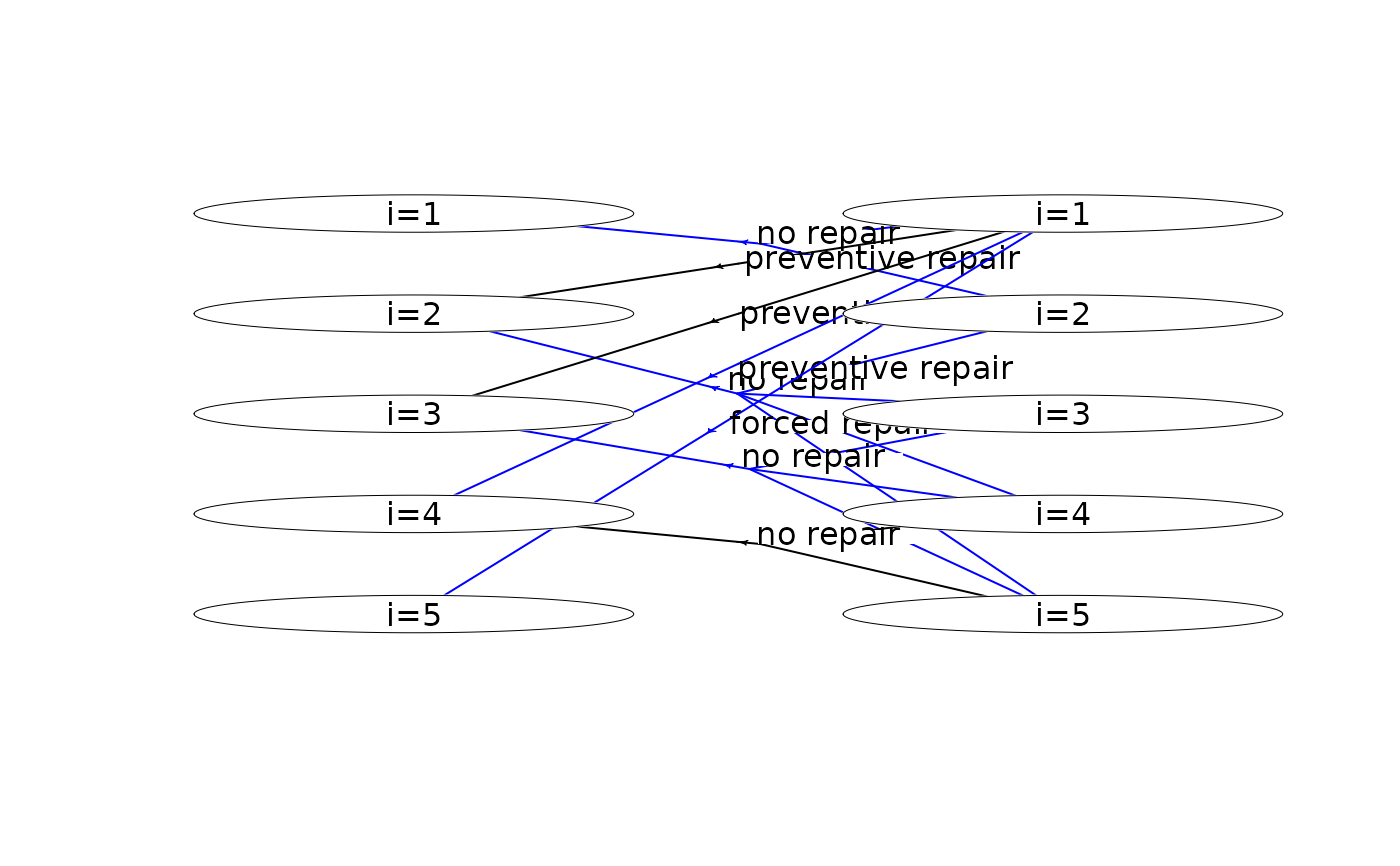

plot(mdp, hyperarcColor = "policy")  # highlight optimal policy
#> Joining with `by = join_by(sId, aIdx)`

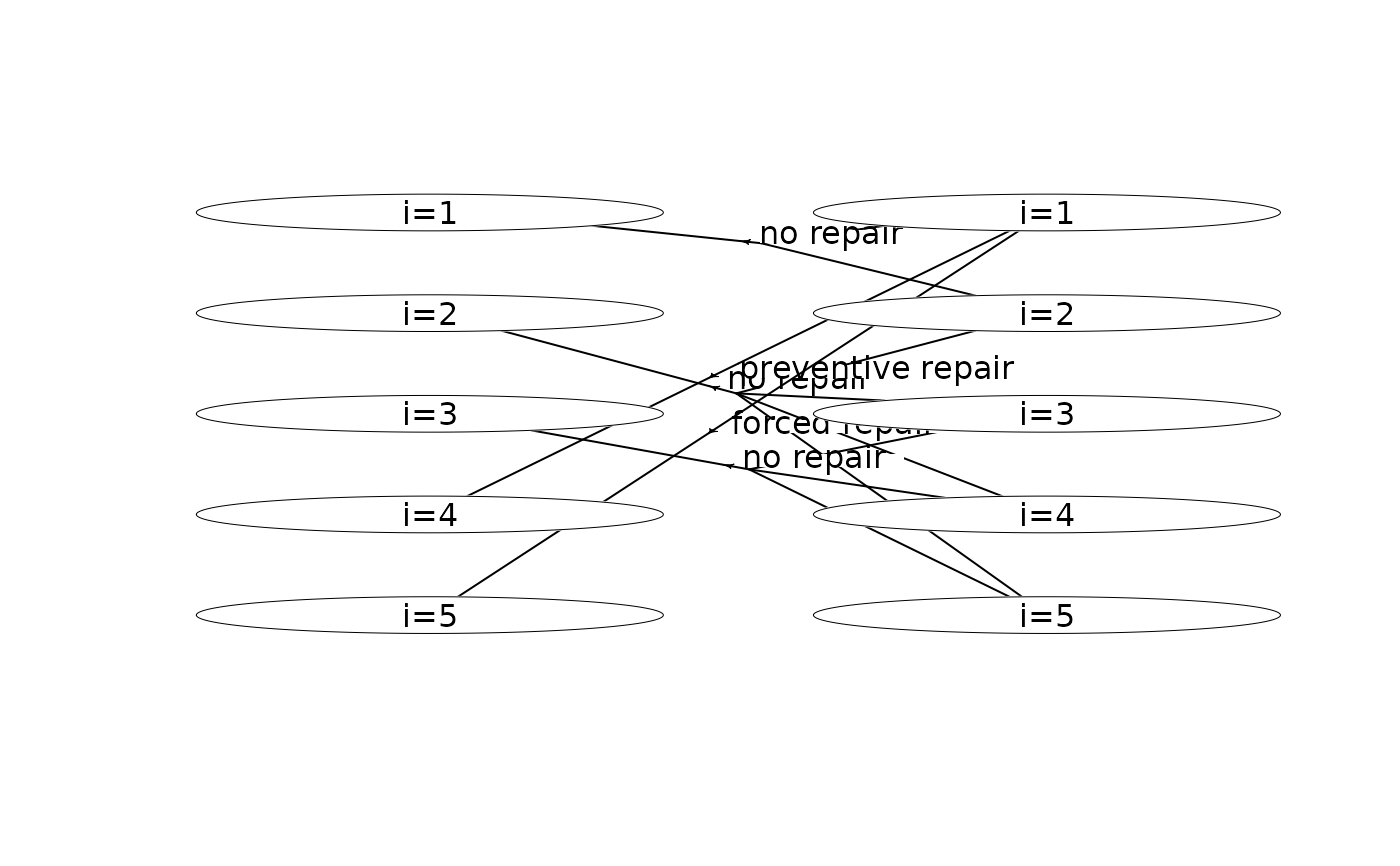

plot(mdp, hyperarcShow = "policy")  # show only optimal policy



#### An infinite-horizon hierarchical replacement problem ####
library(magrittr)
mdp<-loadMDP("cow_")
#> Read binary files (0.000247506 sec.)
#> Build the HMDP (0.000201505 sec.)
#> Checking MDP and found no errors (4.5e-06 sec.)
hgf <- getHypergraph(mdp)
# modify labels
dat <- hgf$nodes %>%
   dplyr::mutate(label = dplyr::case_when(
      label == "Low yield" ~ "L",
      label == "Avg yield" ~ "A",
      label == "High yield" ~ "H",
      label == "Dummy" ~ "D",
      label == "Bad genetic level" ~ "Bad",
      label == "Avg genetic level" ~ "Avg",
      label == "Good genetic level" ~ "Good",
      TRUE ~ "Error"
   ))
# assign nodes to grid ids
dat$gId[1:3]<-85:87
dat$gId[43:45]<-1:3
getGId<-function(process,stage,state) {
   if (process==0) start=18
   if (process==1) start=22
   if (process==2) start=26
   return(start + 14 * stage + state)
}
idx<-43
for (process in 0:2)
   for (stage in 0:4)
      for (state in 0:2) {
         if (stage==0 & state>0) break
         idx<-idx-1
         #cat(idx,process,stage,state,getGId(process,stage,state),"\n")
         dat$gId[idx]<-getGId(process,stage,state)
      }
hgf$nodes <- dat
# modify labels
dat <- hgf$hyperarcs %>%
   dplyr::mutate(label = dplyr::case_when(
      label == "Replace" ~ "R",
      label == "Keep" ~ "K",
      label == "Dummy" ~ "D",
      TRUE ~ "Error"
   ),
   col = dplyr::case_when(
      label == "R" ~ "deepskyblue3",
      label == "K" ~ "darkorange1",
      label == "D" ~ "black",
      TRUE ~ "Error"
   ),
   lwd = 0.5,
   label = ""
   )
hgf$hyperarcs <- dat

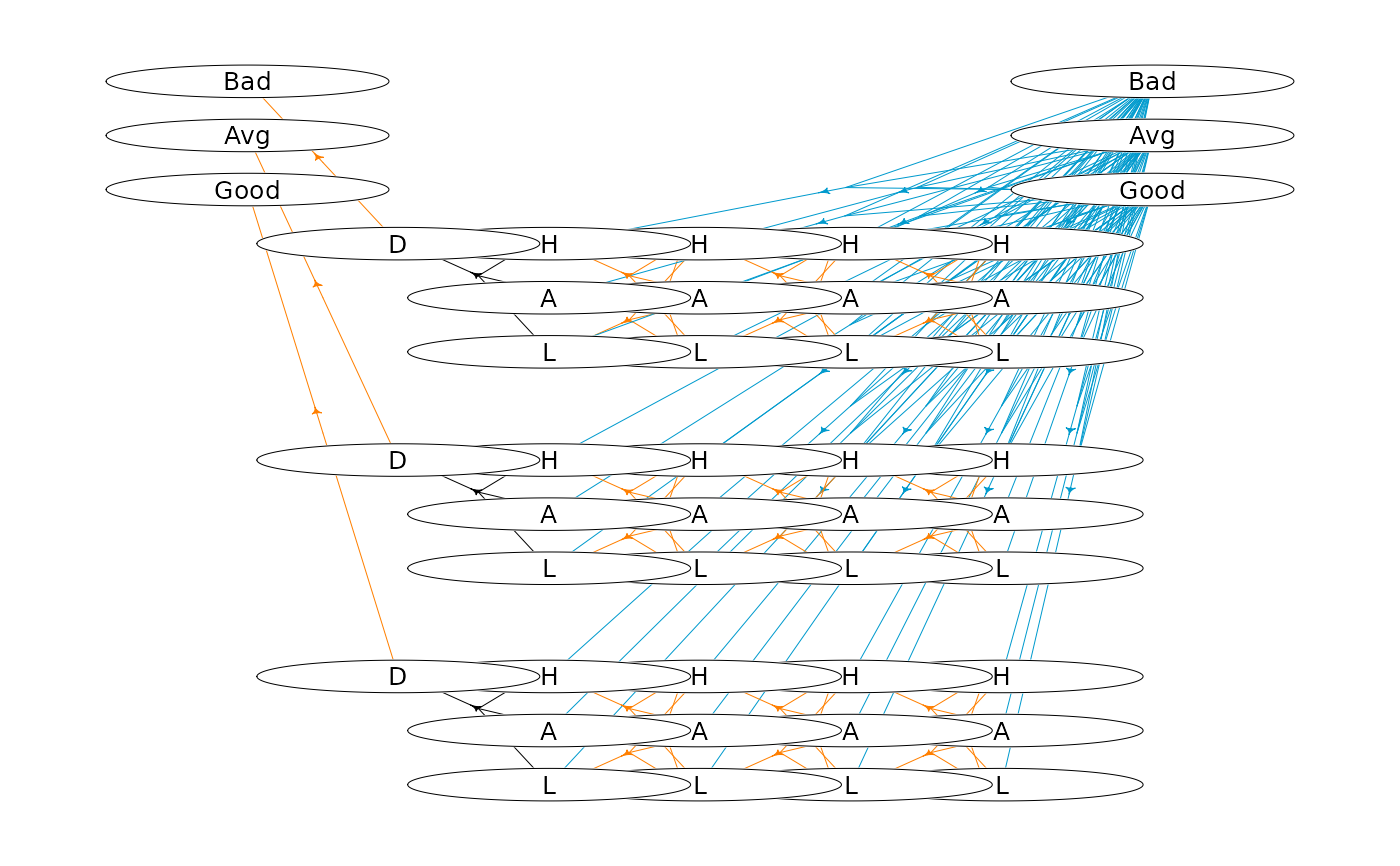

# plot hypergraph
oldpar <- par(mai = c(0, 0, 0, 0))
plotHypergraph(gridDim = c(14, 7), hgf, cex = 0.8, radx = 0.02, rady = 0.03)

par(oldpar)

## Reset working dir
setwd(wd)
